Alloy steel pipes play a crucial role in industries that require high strength, durability, and resistance to extreme temperatures and pressure. They are widely used in power plants, oil refineries, and large-scale construction projects where reliability matters most.
Choosing the right alloy steel pipe directly impacts the safety, performance, and cost efficiency of your operation. With many grades and material standards available, understanding their differences helps ensure your project runs smoothly and meets all technical requirements.
This guide explains the key points to consider when selecting alloy steel pipes for your specific application.
Alloy Steel Pipe Basics
What Is an Alloy Steel Pipe?
Alloy steel pipes contain elements such as silicon and manganese, which improve their mechanical and chemical properties. These pipes show higher strength and toughness compared to carbon steel pipe. The table below highlights key differences between alloy steel pipes and carbon steel pipes:
| Property | Alloy Steel Pipes | Carbon Steel Pipes |
|---|---|---|
| Yield Strength | Exceeds 500 MPa | 245-345 MPa |
| Tensile Strength | Exceeds 700 MPa | 400-500 MPa |
| Toughness | Enhanced by alloying elements | Good plasticity and formability |
| Brittle Transition Temp | Lower due to alloying elements | Not specified |
| Composition | Contains silicon, manganese, and other alloying elements | Primarily iron and carbon (0.06% to 1.5% carbon) |
Alloy steel pipes offer lower brittle transition temperatures, which means they perform better in cold environments. Engineers select these pipes for projects that demand high strength and durability. The unique composition makes alloy steel pipe suitable for demanding industrial applications.
Common Alloy Steel Pipe Types
Alloy steel pipes come in several types, each designed for specific uses. Seamless alloy steel pipes provide uniform strength and are ideal for high-pressure systems. Welded alloy steel pipes offer cost-effective solutions for less demanding applications.
Tip: Seamless alloy pipes work best in environments where leaks must be prevented.
High alloy steel pipes contain a larger percentage of alloying elements, which increases resistance to heat and corrosion. Low alloy steel pipes have lower amounts of alloying elements and balance cost with performance. The most widely used types include:
- P1, P2, P5, P9: Used in high-temperature and pressure applications.
- T11, T22: Common in power generation and chemical processing industries.
- P91: Known for strength and durability, often used in power plants.
- Oil and Gas: Used for refineries, drilling operations, and transportation of natural gas and crude oil.
- Power Generation: Essential for transporting steam and hot gases under high pressure in power plants.
- Chemical Processing: Suitable for transporting corrosive chemicals due to their durability and resistance to corrosion.
- Automotive and Aerospace: Used in high-performance engine parts and exhaust systems.
- Construction: As structural components in buildings, bridges, and infrastructure.
Seamless alloy pipes and welded alloy pipes both play important roles in modern industry. Engineers choose the right type based on project requirements and environmental conditions.

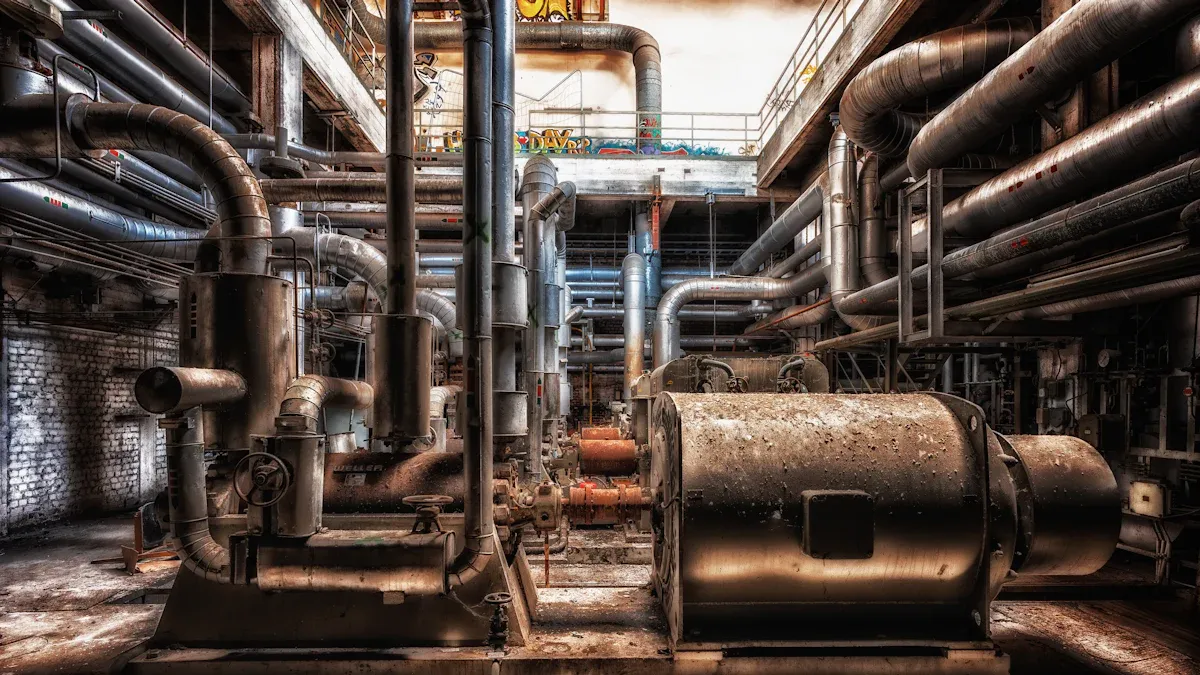

Application Requirements for Alloy Steel Pipes
Selecting alloy steel pipes for any project starts with a clear understanding of the application requirements. Engineers must match the pipe’s properties to the specific needs of the project. Pressure, temperature, and environment all play a role in determining the best steel pipe for long-term performance.
Pressure and Temperature Needs
Pressure and temperature are two of the most important factors in alloy steel pipe selection. High-pressure steam applications require pipes that meet strict safety standards. The ASME B31 series provides codes for power piping, including formulas for calculating pressure ratings based on pipe dimensions and material. In supercritical power plants, steam pressures reach extremely high levels, so pipes must handle these conditions safely.
Alloy steel pipes are ideal for high-temperature services such as heater tubes and steam headers. They are made from high-quality carbon steel and alloy structural steel, which makes them suitable for chemical, petrochemical, and energy-related applications. The table below shows the temperature ranges for common pipe types:
| Pipe Type | Maximum Temperature (°C) | Continuous Use Temperature (°C) |
|---|---|---|
| Ordinary Seamless Steel | 1130 | 650 |
| Alloy Seamless Steel | 1650 | N/A |
Note: Always check the pressure and temperature ratings before choosing alloy steel pipes for any application.
Environmental and Corrosion Factors
Environmental conditions can affect the performance and lifespan of alloy steel pipes. Chemical processing plants often require pipes that withstand extreme pressures and temperatures. Pipes must also be reliable in corrosive environments. Materials like stainless steel offer good corrosion resistance, while duplex stainless steel or alloys such as Hastelloy or Inconel are recommended for highly corrosive settings.
Sustainability and compliance with environmental regulations are important. The environmental impact of material extraction, processing, and disposal should be considered. Pipes must maintain integrity at high temperatures and prevent thermal expansion to avoid deformation or leakage.

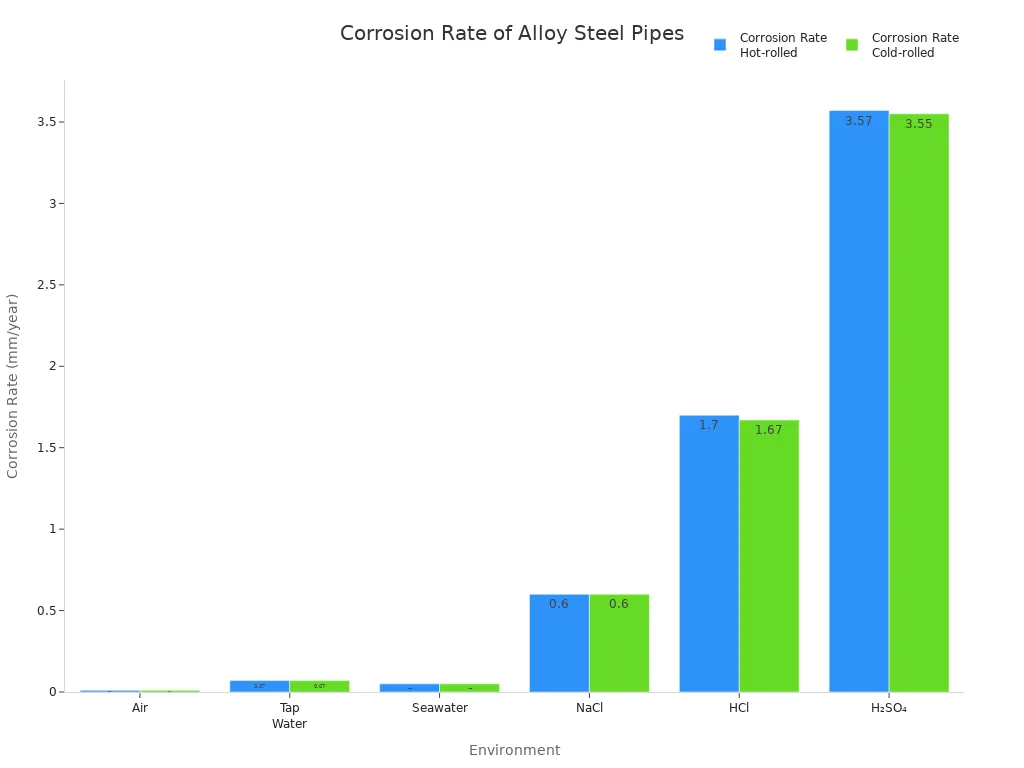

The table below shows corrosion rates for alloy steel pipes in different environments:
| Environment | Corrosion Rate (mm/year) | Weight Loss (%) | Thickness Reduction (%) |
|---|---|---|---|
| Air | < 0.01 | 0.156 | < 6 |
| Tap Water | ≤ 0.07 | < 1 | < 6 |
| Seawater | ~ 0.04–0.05 | < 1 | < 6 |
| NaCl | < 0.6 | 15.62 (cold-rolled) / 22.5 (hot-rolled) | N/A |
| HCl | 1.70 (hot-rolled) / 1.67 (cold-rolled) | 10.37 (cold-rolled) / 8.65 (hot-rolled) | N/A |
| H₂SO₄ | 3.57 (hot-rolled) / 3.55 (cold-rolled) | 21.67 (cold-rolled) / 18.08 (hot-rolled) | N/A |
Tip: For marine or acidic environments, choose alloy steel pipes with proven corrosion resistance.
Sizing and Standards
Proper sizing and adherence to standards ensure safe and efficient operation. The oil and gas industry relies on international standards to maintain quality and compatibility. Engineers must select the correct pipe size based on flow rate, pressure, and application requirements.
The table below lists common standards for alloy steel pipes used in oil and gas projects:
| Standard | Description |
|---|---|
| BS EN 10216-2 | Seamless steel pipes for pressure purposes – Technical delivery conditions – Part 2: Non-alloy and alloy steel tubes with specified elevated temperature properties. |
| BS EN 10253-2 | Butt-welding pipe fittings – Part 2: Non alloy and ferritic alloy steels with specific inspection requirements. |
Always verify that alloy steel pipes meet the required standards for your project.
Engineers should assess all application requirements before making a final selection. Matching the pipe’s pressure rating, temperature tolerance, corrosion resistance, and sizing to the project’s needs helps prevent costly mistakes and ensures long-term reliability.
Choosing the Right Alloy Steel Pipe Grade
Material Properties and Strength
Engineers consider material properties first when choosing the right alloy steel pipe for any application. These properties include tensile strength, yield strength, elongation, and weldability. High strength and durability are essential for demanding environments in the oil and gas industry and power generation.
The mechanical properties of alloy steel pipes vary by grade. For example, ASTM A335 P91 offers high tensile strength and reliable yield strength. The table below shows typical values for P91:
| Property | Value (MPa) |
|---|---|
| Minimum Yield Strength | 415 |
| Minimum Tensile Strength | 585 |
| Elongation Limits (%) | 20 – 30 |
Grades of alloy steel pipes such as P5, P9, and P22 also provide strong mechanical properties. These grades support high-pressure and high-temperature service. Engineers select the material and grade based on the required strength and durability for each project.
Heat and Corrosion Resistance
Heat resistance and corrosion resistance play a major role in the selection process. High-grade alloy steel pipes withstand extreme temperatures and resist oxidation. P5 and P22 grades show excellent performance in high-temperature service.
The table below compares the material properties of P5 and P22:
| Property | P5 | P22 |
|---|---|---|
| Chromium Content | 4.00% – 6.00% | 1.90% – 2.60% |
| Molybdenum Content | 0.45% – 0.65% | 0.87% – 1.13% |
| Minimum Yield Strength | 205 MPa | 205 MPa |
| Minimum Tensile Strength | 415 MPa | 415 MPa |
| High-Temperature Suitability | Yes, oxidation resistance | Yes, creep resistance |
- P5 is designed for high-temperature applications with enhanced oxidation resistance.
- P22 performs well in environments above 540 °C, making it suitable for power generation and petrochemical industries.
Corrosion resistance varies among grades of alloy steel pipes. P91 steel has moderate resistance to corrosive agents. It offers better oxidation resistance than P22 or P11 due to higher chromium content. However, P91 may not perform as well in acidic environments and is susceptible to stress corrosion cracking in chloride-rich settings.
Tip: Always match the material properties and grade to the specific environment and temperature range of your project.
Common Grades (ASTM A335, P5, P9, P11, P22, P91)
The oil and gas industry and power plants rely on several common grades of alloy steel pipes. Each grade offers unique material properties and mechanical properties. ASTM A335 covers seamless ferritic alloy steel pipe for high-temperature service.
- P5: Used for high-temperature and oxidation-resistant applications.
- P9: Chosen for its high strength and durability in steam and chemical processing.
- P11: Offers good weldability and moderate corrosion resistance.
- P22: Preferred for creep resistance and weldability in power generation.
- P91: Delivers high tensile strength and durability, often used in supercritical steam environments.
Engineers evaluate the material and grade based on project needs. Weldability is important for installation and maintenance. High tensile strength ensures long-term reliability in demanding conditions. Choosing the right alloy steel pipe grade helps achieve optimal performance and safety.
Note: Always consult with experts when selecting grades of alloy steel pipes for complex projects.
Cost and Availability Considerations
Balancing Cost and Performance
Cost plays a major role when selecting alloy steel pipes for industrial projects. Engineers must weigh performance against budget limits. Alloy steel pipe offers a cost-effective solution compared to stainless steel pipe, which is usually more expensive due to its higher corrosion resistance.
| Pipe Type | Cost Comparison |
|---|---|
| Stainless Steel | Generally more expensive due to higher corrosion resistance and properties |
| Alloy Steel | More cost-effective and widely used in various industries |
Lead Times and Sourcing
Lead times affect project schedules and can impact overall costs. Several key factors to consider influence how quickly suppliers deliver steel pipe. Supply chain issues and economic conditions may cause delays. Inventory management and strategic locations help reduce waiting times.
| Factor | Description |
|---|---|
| Supply Chain Issues | Ongoing supply chain issues may continue to affect lead times for steel products throughout 2023. |
| Economic Conditions | High inflation rates lead to reduced spending, negatively impacting supply chains and distribution. |
| Inventory Management | Maintaining a large inventory can help reduce lead times for sourcing steel products. |
| Strategic Locations | Having service centers in strategic locations allows for quicker response to just-in-time needs. |
Note: Teams should plan ahead and communicate with suppliers to avoid delays in sourcing alloy steel pipes.
Practical Steps for Choosing the Right Alloy Steel Pipe
Consulting Experts and Suppliers
Project teams should consult with engineers and suppliers before selecting alloy steel pipe. They need to understand the different steel grades to avoid mistakes that can cause delays or extra costs. Teams should ask about recommended pipe lengths, finishes, and the chemical and mechanical properties needed for the application.
- Consider the temperature and pressure requirements for the project.
- Evaluate the environment where the pipe will be used.
- Discuss any country or manufacturing restrictions that may affect the order.
Tip: Asking specific questions helps ensure the chosen alloy steel pipes meet all project needs.
Quality Certifications and Standards
Verifying certifications and standards is essential for quality assurance. The following table lists important certifications for pressure vessel applications:
| Certification | Description |
|---|---|
| ASME U | Manufacture of pressure vessels according to ASME Code Section VIII Division I |
| ASME S | Manufacture and assembly of power boilers under ASME Code Section I |
| ASME B31.1 | Fabrication and assembly of pressure piping under ASME Code B31.1 |
| NBIC R | Repairs and alterations of pressure retaining items under the National Board Inspection Code |
International standards also play a key role in quality control.
| Standard | Key Requirements |
|---|---|
| API 5L | Appearance, dimensions, mechanical properties, non-destructive and pressure testing |
| ASTM A53 | Chemical analysis, appearance, mechanical testing, hydrostatic or pneumatic testing |
| ASTM A106 | Chemical analysis, mechanical properties, hydrostatic testing, non-destructive testing |
| GB/T 8163 | Appearance, chemical testing, dimensions, mechanical testing, pressure testing |
| GB/T 3091 | Chemical analysis, appearance, dimensions, mechanical properties, non-destructive testing |
| ISO 3183 | Appearance, mechanical properties, chemical composition, non-destructive and pressure testing |
Note: Quality confirmation reports should include data on chemical composition, mechanical properties, and heat treatment.
Installation and Maintenance Tips
Proper installation of alloy steel pipes increases their lifespan. Teams should use correct support spacing to allow for thermal expansion. Expansion loops help prevent stress on hot-runner lines.
Regular maintenance routines identify and address issues early.
Tip: Proper maintenance ensures reliable performance and reduces the risk of unexpected failures.
A checklist can help teams avoid common mistakes during selection, installation, and maintenance.
- Consult with experts and suppliers.
- Verify certifications and standards.
- Follow recommended installation practices.
- Schedule regular maintenance checks.
Alloy Steel Pipe Selection Checklist
Step-by-Step Guide
A well-structured checklist helps project teams select the right alloy steel pipe for any industrial application. The following table outlines essential items to review before making a final decision:
| Essential Item | Description |
|---|---|
| Corrosivity | Consider the system’s operating conditions and possible corrosion risks. |
| Design Life | Assess how long the system must operate reliably. |
| Failure Analysis | Evaluate potential failure modes and their impact on safety and assets. |
| Material Resistance | Ensure the pipe resists brittle fracture and other mechanical failures. |
| Inspection | Plan for regular inspection and corrosion monitoring. |
| Maintenance | Define access for maintenance and repair activities. |
| Operating Temperature | Determine both minimum and maximum operating temperatures. |
| Weldability | Assess weldability for all required joints and overlays. |
| Hardenability | Consider hardenability for carbon and low alloy steels. |
| Market Availability | Choose materials with good availability and proven performance. |
| Material Variety | Minimize the number of different materials to control costs and inventory. |
| Environmental Impact | Review environmental impact and required permissions. |
Project teams should also follow these steps:
- Define project requirements, including pressure, temperature, and environment.
- Consult with experts to gain insights on alloy selection and specifications.
- Evaluate available alloy grades and select one that matches project needs.
- Consider weldability and formability for fabrication and installation.
- Review cost and local availability of the selected steel pipe.
Tip: Always include inspection and maintenance planning in the early stages to ensure long-term reliability.
Mistakes to Avoid
Selecting the wrong alloy steel pipes can cause serious problems. Using a pipe with insufficient strength or corrosion resistance may lead to leaks, bursts, or even safety hazards. Teams should avoid these common mistakes:
- Failing to verify that the material meets the required pressure and temperature ratings.
- Overlooking the importance of corrosion resistance in harsh environments.
- Ignoring weldability and manufacturability, which can complicate installation.
- Choosing too many different materials, which increases costs and complicates stock management.
- Not considering the long-term maintenance needs of the system.
If a high-pressure liquid or gas flows through a pipe not designed for such conditions, the risk of leaks, bursts, or even explosions increases. This can damage property and endanger personnel.
Reduced product performance, increased maintenance, and higher costs often result from selecting the wrong grade. Careful planning and adherence to the checklist help prevent these issues.
Conclusion
Selecting the right alloy steel pipe depends on understanding your project’s pressure, temperature, and environmental needs. Each grade offers specific advantages in strength, corrosion resistance, and heat tolerance.
Choosing the correct grade ensures safety, efficiency, and long service life. Always verify that the pipes meet ASTM or ASME standards and come from certified manufacturers. Consulting with experienced suppliers helps avoid mismatches and costly downtime.
By balancing performance, quality, and budget, you can ensure the selected alloy steel pipes deliver reliable results and long-term value for your industrial operation.
