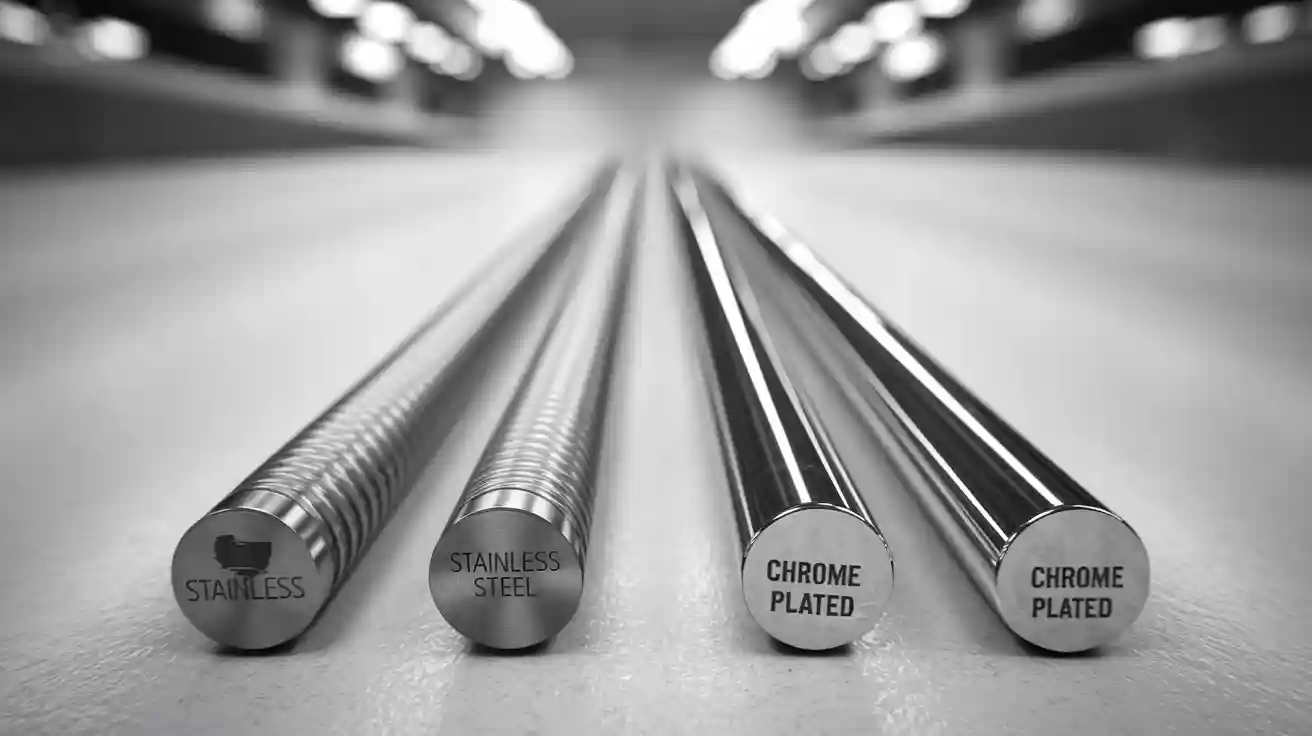

Stainless steel rods and chrome plated rods are both used in demanding applications, but they serve different purposes. Stainless steel is known for its corrosion resistance and strength, while chrome plating offers a hard, wear-resistant surface at a lower cost. The right choice depends on factors like operating conditions, exposure to moisture or chemicals, and maintenance expectations. This guide looks at the key differences to help you choose the more suitable option for your needs.
Material Differences

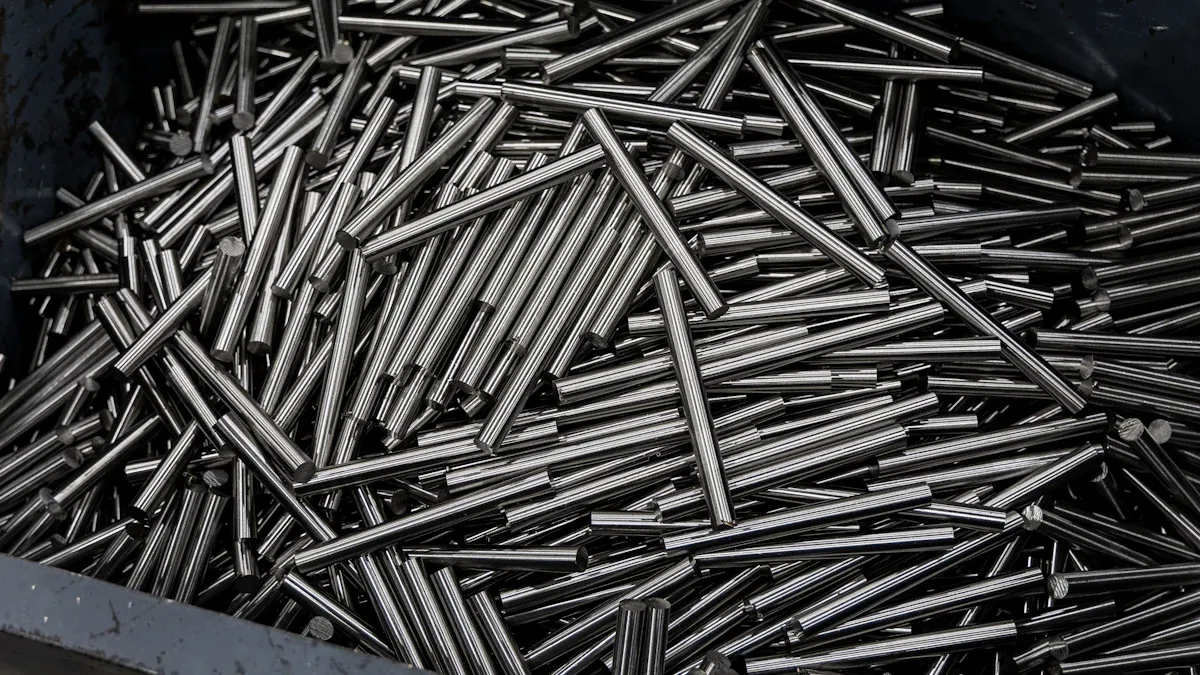

Stainless Steel Rods
Stainless steel is used in many different industries. There are many grades of stainless steel for different jobs. Each grade has its own special features. The main types are austenitic, ferritic, martensitic, and duplex. These types have different mixes and work in different ways. The table below shows important details:
| Stainless Steel Type | Key Chemical Composition | Mechanical Properties | Typical Industrial Applications |
|---|---|---|---|
| Austenitic (e.g., 304, 316) | Chromium 18-25%, Nickel, Manganese, Nitrogen, Carbon | High tensile strength, corrosion resistance, ductility, toughness, temperature resistance (high and low), formability | Kitchen equipment, food processing, chemical processing, medical and surgical instruments, aerospace, automotive |
| Ferritic (400 series) | Chromium 10.5-27%, low Nickel | Magnetic, good ductility, tensile stability, corrosion resistance, thermal fatigue resistance | Automotive parts, petrochemical industry, heat exchangers, appliances, food equipment |
| Martensitic (400 series) | Chromium 12-15%, Carbon (low to high), Molybdenum up to 1% | High strength at low temperatures, creep resistance at elevated temperatures, magnetic, high ductility and toughness | Compressor blades, turbine parts, cutlery, surgical instruments, bolts, nuts, machine parts |
| Duplex (2000 series) | Chromium 22-25%, Molybdenum up to 5%, very low Nickel | Double the strength of austenitic/ferritic, excellent corrosion resistance and toughness | Chemical, oil and gas processing, marine, pulp and paper, cargo tanks, heat exchangers, construction |
Stainless steel does not rust easily and keeps looking good. Many companies choose stainless steel rods because they last long and handle heat well. These rods also do not need much care. Stainless steel rods are good for the planet since they can be recycled.
Chrome Plated Rods
Choosing chrome plated rods is due to their hard and smooth finish. Chrome plating puts a thin layer of chrome on a steel rod using electricity. The process needs careful control to get the right thickness. This makes the rod shiny and harder on the outside.
- The chrome layer helps stop wear, damage, and rust.
- Chrome plated rods are very hard, between 68 and 72 on the Rockwell C scale.
- The chrome sticks well to the steel, so it does not peel off.
- Chrome plating can cover rods with holes or special shapes.
- Good prep and control help stop problems like rust spots or bubbles.
Chrome plated rods help the steel last much longer. Many industries use these rods when they need something strong and shiny. The mix of a tough steel center and a hard chrome outside makes these rods work well in tough places.
Durability and Corrosion Resistance
Wear and Surface Hardness
Stainless steel rods are used in many industries because they last a long time. They are strong and do not bend or break easily. The chromium in them makes a layer that stops rust. This layer keeps the rods strong for many years. Most stainless steel rods can last more than 50 years, even in hard jobs. But their surface is not as hard as chrome plated rods. So, stainless steel can get scratched or worn faster where there is a lot of rubbing.
Chrome plated rods have a very hard and smooth outside. The chrome layer makes them very hard, with a rating up to Rc 55-60. This is why they are good for strong parts, like in hydraulic and pneumatic systems. The hard chrome cuts down on rubbing and heat. This helps the rods last longer in machines that move a lot. The chrome also keeps the rod safe from dents and chips. That is why people use them for parts that move or get hit often.
Rust and Tarnish Protection
Corrosion resistance is important when picking between stainless steel and chrome plated rods. Stainless steel does not rust because its chromium makes a thin layer. This layer fixes itself if it gets scratched. So, the rod stays protected for a long time. Stainless steel also fights off pitting, which is good in salty or chemical places.
Chrome plated rods use the chrome layer to keep water and air away from the steel inside. This layer gives great rust protection at first. But tiny cracks can show up in the chrome after some time. These cracks let water or chemicals get to the steel inside. This can cause rust if you do not take care of the rod. Cleaning and checking chrome plated rods often helps them last longer.
Both types need some care, but stainless steel needs less. It does not rust or tarnish easily, so you do not have to fix it much. Chrome plated rods need more care, especially in tough places, to keep the chrome layer good.
- Stainless steel rods: Best if you want long-lasting rust protection and little work.
- Chrome plated rods: Best for parts that get a lot of use and need regular care.
Appearance and Finish
Visual Differences
People who work with rods can see big differences between polished stainless steel rods and chrome plated rods. Polished stainless steel rods have a smooth and shiny look. They reflect light, but the shine is soft and not as bright as a mirror. Many people like polished stainless steel because it looks clean and modern. It works well in factories and also looks nice in decorations.
Chrome plated rods look different because they have a mirror finish. The chrome layer makes the rod very shiny, almost like glass. This mirror finish makes chrome rods look brighter and stand out more. Both rods are silver, but chrome rods look sharper and more dazzling. Polished stainless steel rods look fancy, but chrome rods look bold and really catch your eye.
Surface Texture
How a rod feels and works depends on its surface texture. Both polished stainless steel and chrome plated rods can be made very smooth, with roughness less than 0.2 μm Ra. Makers use fine grinding, polishing, and chrome plating to get this smoothness. Polished stainless steel rods feel smooth, with almost no bumps. This smoothness helps moving parts last longer.
Chrome rods are also very smooth, especially after polishing. The mirror finish on chrome rods looks good and helps seals and moving parts work better. Polishing after chrome plating keeps the mirror finish even and free from marks. Both rods have great surface quality, but chrome rods with a mirror finish feel extra smooth, almost like glass.
| Feature | Polished Stainless Steel | Chrome Plated Rods (Mirror Finish) |
|---|---|---|
| Shine Level | High | Very High (Mirror Finish) |
| Reflection Quality | Soft, clear | Sharp, glass-like |
| Surface Roughness (Ra) | < 0.2 μm | < 0.2 μm |
| Feel | Smooth | Ultra-smooth, slick |
Maintenance and Repair
Cleaning Needs

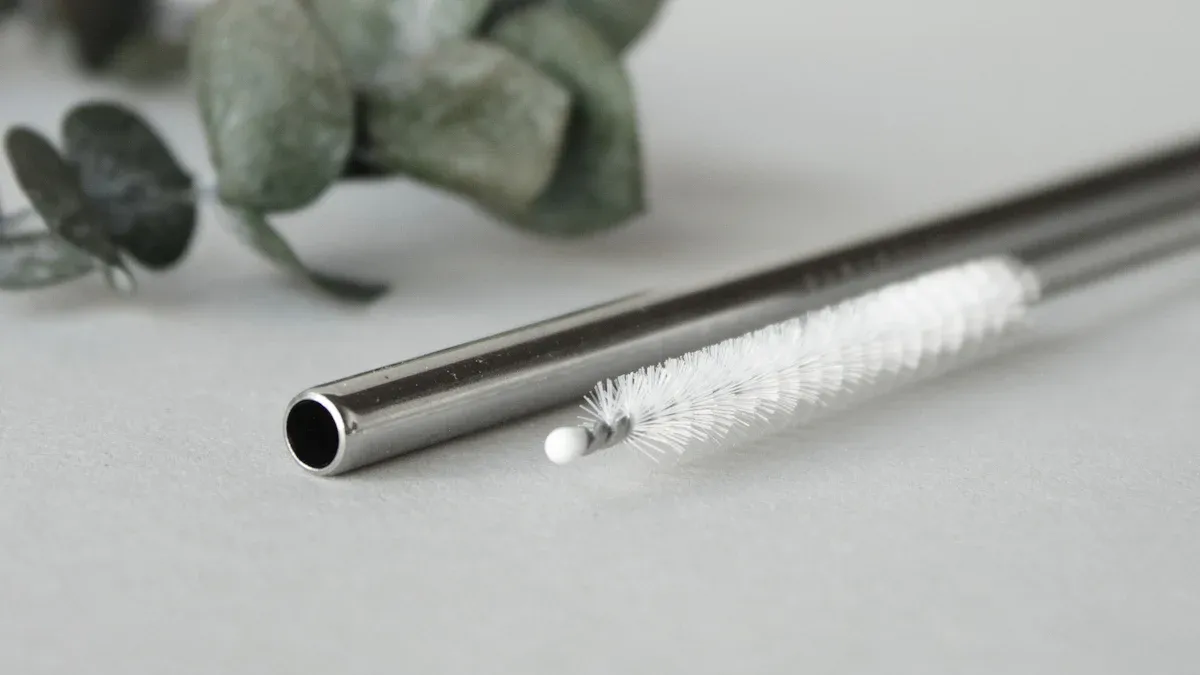

Proper cleaning and infection control play a key role in keeping rods in good condition. Stainless steel rods require simple steps to stay clean and shiny. Most manufacturers recommend the following cleaning process:
- Wash the surface with warm water, dish soap, and a soft brush or sponge.
- Rinse with fresh water and dry using towels.
- Apply a small amount of olive oil to a microfiber cloth and polish the rod in small circles.
- Buff the surface until it looks smooth and shiny.
- Use a dry cloth to remove any extra oil, again using circular motions.
- For extra shine, cover the rod with a thin layer of flour, buff with a dry cloth, and wipe away the flour.
- For deeper scratches or dullness, use a power buffer and stainless steel polish, following the manufacturer’s instructions.
- Wipe away all polish residue with a dry cloth.
These steps help stainless steel rods keep their appearance and resist stains. Chrome plated rods do not have specific manufacturer cleaning guidelines, but most experts suggest using mild soap and water, then drying with a soft cloth. Avoid harsh chemicals or abrasive pads, as these can damage the chrome layer.
Repairability
Stainless steel rods offer lower maintenance because they resist rust and scratches. If a stainless steel rod gets scratched, users can often polish out the marks with a buffer or special polish. This makes stainless steel a good choice for areas where cleaning and infection control matter.
Chrome plated rods need more care. If the chrome layer chips or cracks, repair becomes difficult. Most times, users must replace the rod or send it for professional re-plating. Small scratches may polish out, but deep damage can expose the steel underneath.
Cost Comparison
Upfront Price
When people look at stainless steel rods and chrome plated rods, price is important. Chrome plated rods usually cost less at first. Makers use regular steel and put a thin chrome layer on top. This makes them cheaper to make. Because of this, chrome plated rods are good for projects with small budgets.
Stainless steel rods cost more because they use special materials. The mix has chromium and sometimes nickel or molybdenum. This makes the price go up. Some types, like duplex stainless steel, cost even more. People pay extra for the strength and rust protection that stainless steel gives. Many buyers see this higher price as a way to get better results for a long time.
Long-Term Value
The real value of a rod shows up after some time. Stainless steel rods can save money later because they do not need much care. They also do not need to be replaced often. These rods fight rust and stay strong, even in tough places.
Chrome plated rods have a hard and smooth outside. But they need the chrome layer to protect them. Over time, this layer can wear away, especially if the rod is used a lot. When the chrome is gone, the rod can rust or need to be replaced. This means you may spend more money on care and new rods.
Key points to remember:
- Stainless steel rods do not rust easily and last longer.
- Duplex stainless steel can last many years and save money.
- Chrome plated rods may need more care as the chrome wears off.
- Buying good stainless steel rods can lower repair and work costs.
| Feature | Stainless Steel Rods | Chrome Plated Rods |
|---|---|---|
| Corrosion Resistance | Naturally corrosion-resistant; less maintenance | Chrome layer resists corrosion but can wear off |
| Maintenance Needs | Low; occasional polishing | Higher as chrome deteriorates |
| Replacement Frequency | Low, even in harsh environments | Higher if chrome layer fails |
| Initial Cost | Higher | Lower |
| Long-term Ownership Cost | Lower due to durability | Potentially higher due to upkeep and replacements |
| Durability | Highly durable, especially with advanced coatings | Durable, but lifespan depends on chrome layer |
Applications Comparison
Stainless steel rods are widely used in environments that demand long-term resistance to corrosion and exposure to moisture, chemicals, or extreme temperatures. Common applications include marine components, food processing machinery, medical equipment, and chemical plants. These rods are ideal where hygiene, rust prevention, and structural strength are critical over time.
Chrome plated rods, on the other hand, are mainly used in hydraulic cylinders, pneumatic systems, industrial automation, and construction equipment. They provide excellent surface hardness and wear resistance, making them suitable for high-cycle operations and sliding movements. However, since the chrome layer is only surface-deep, they are less suitable for highly corrosive environments.
When comparing applications, choose stainless steel rods for corrosion-heavy and hygienic industries, and go with chrome plated rods for mechanical systems that require low friction and surface durability. Matching the rod type to the specific application improves performance and reduces maintenance costs.
Conclusion: Which One to Choose?
Stainless steel rods and chrome plated rods are used in different ways. Stainless steel is strong against rust and works well in wet or clean places. Chrome plated rods are cheaper and resist wear, but they are better for dry, indoor use. You should choose based on where and how you will use the rod. Selecting the right one helps your machine work better, last longer, and need less repair.
| Criteria | Stainless Steel Rod | Chrome Plated Rod |
|---|---|---|
| Corrosion Resistance | Excellent – ideal for wet, humid, or chemical environments | Limited – relies on chrome layer; vulnerable if plating is damaged |
| Surface Hardness | Moderate | High – hardened chrome surface offers excellent wear resistance |
| Maintenance | Low – naturally resistant to rust and corrosion | Moderate to High – requires regular inspection and re-coating |
| Typical Applications | Marine, food processing, medical, clean rooms | Hydraulic cylinders, pneumatic systems, linear motion components |
| Durability | Long service life with minimal upkeep | Good under controlled conditions; plating wear can reduce lifespan |
| Cost | Higher upfront investment | Lower initial cost |
| Environmental Tolerance | Performs well in harsh or corrosive settings | Best in dry, controlled environments |
| Overall Advantage | Long-term reliability, corrosion resistance, low lifecycle cost | High surface hardness, cost-effective for wear-intensive applications |
